Cub Cadet
Ultima ZTX5 60 a 60-inch 10-gauge steel fabricated deck and dual ZT3200 transmissions,
Ultima ZTX5 60 a 60-inch 10-gauge steel fabricated deck and dual ZT3200 transmissions,
SKU:MT47AIAAA8330
Couldn't load pickup availability
Shipping info
Shipping info
Shipping charges for your order will be calculated and displayed at checkout. However due to the nature and size of some of our products, surcharges may apply for some items based on the size, weight or delivery location. If your delivery address is rural, please select the rural delivery option at checkout. Please be aware that the store may contact you to discuss any rural surcharges.Â

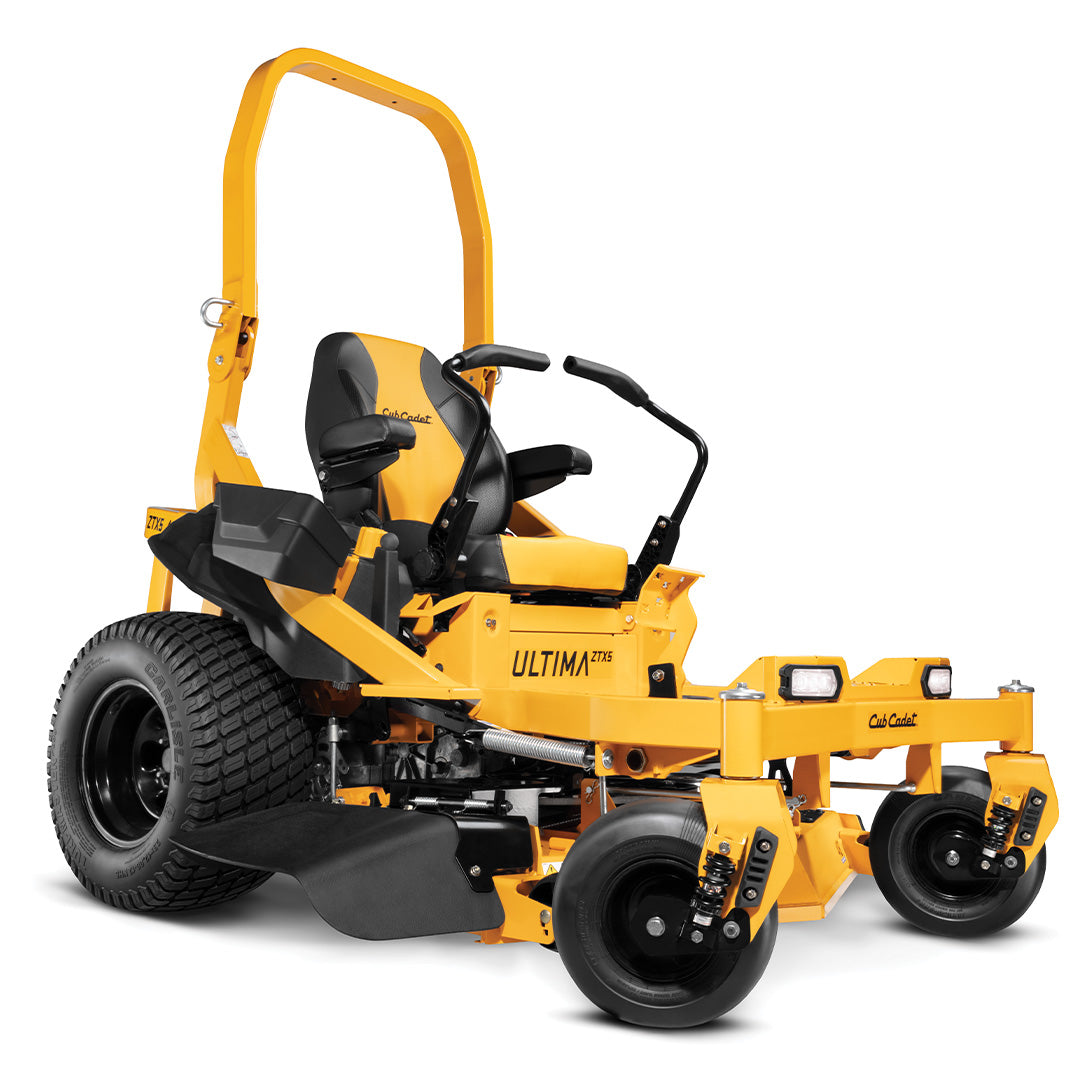

Ultima ZTX5 60
The Ultima series represents the next evolutionary step in zero-turn mowers.
With a strong focus on user comfort, these mowers boast numerous intelligent ergonomic features. The open rear design and convenient access to the belts and deck make ongoing maintenance a simple task.
You can have peace of mind knowing that the Ultima series is supported by Cub Cadet’s 2-year warranty.
- 60-Inch Fabricated Cutting Deck
- Roll Over Protection
- 24HP Kawasaki V-Twin Engine
- 2 Year Warranty
The next generation Ultima ZTX5 60 stands out with its distinct look and cutting-edge design.
Engineered with commercial-grade features, it includes a 60-inch 10-gauge steel fabricated deck, ROPS bar, and dual ZT3200 transmissions, ensuring exceptional durability and productivity.
Prioritizing user comfort, this mower incorporates various clever ergonomic elements, such as a high back comfort seat with armrests, rubber footrest, easy dial for deck height adjustment, and overmolded comfort lap bars, among other thoughtful additions.
Combining agile zero-turn maneuverability for heightened productivity and Cub Cadet’s renowned Aeroforce deck design, it delivers a best-in-class cutting finish.
Whether dealing with different block sizes or varied terrains, the Ultima ZTX5 60 proves to be the ultimate zero-turn mower, catering to a wide range of needs with ease.
| Weight | 395 kg |
|---|---|
| Dimensions | 215 Ă— 159 cm |
| PTO Clutch | Electronic Fingertip Engagement |
| Warranty | 2 Year |
| Engine Model | 24 HP Kawasaki V-Twin OHV |
| CC Rating | 726 |
| Start System | Engine Start With Ignition Key |
| Blades | Triple |
| Turning Radius | Zero Turn |
| Speed | 13.7 km/h |
| Fuel Tank Size | 22.8 L |
| Additional Features | Anti Scalp Wheels, Foot Operated Deck Lift, Easy Dial – Deck Height Control, High Back Comfort Seat With Armrests, LED Headlights, Comfort Lever Steer Lap Bars, Front Suspension, Enhanced Traction C |
| Maximum Slope Gradient | Up To 15 Degrees |
| Tow Hitch | Yes |
| Catcher Kits - Side Discharge | No |
| Drive System | Dual EZT 3200 |
| Deck Construction | Fabricated Steel |
| Mulch Function | Optional |
| Power | Petrol |
| Cutting Width | 60 Inch |
| Cutting Height Range | 17 Position Cutting Adjustment 25 – 121 mm |
| Catcher Size | No |
| Spec Sheets | Download |
| Operating Manuals | Download |
